Engine/Transmission (1994 - 1998) 1997 dodge plug in cab

[savage54]

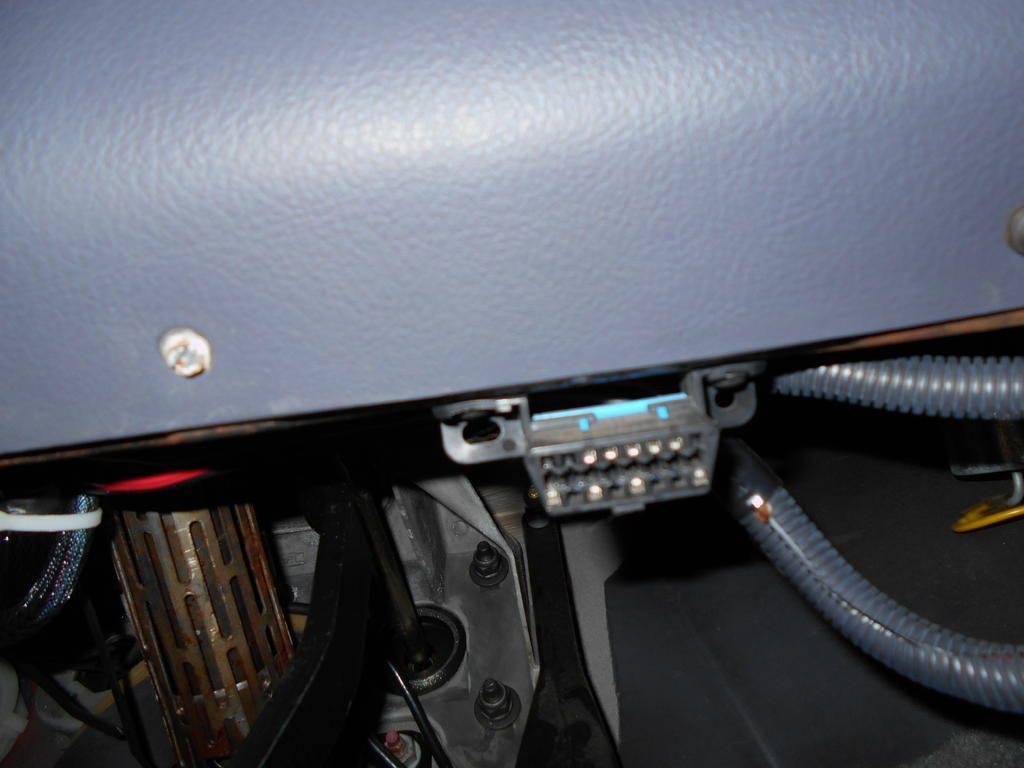

In the cab on the driver side under the dash their is a plug. I all ways thought that this year 1997 was not controlled by a computer. So what does this plug do?



[Lynx0849]

In the cab on the driver side under the dash their is a plug. I all ways thought that this year 1997 was not controlled by a computer. So what does this plug do?

Wild guess... trailer brake controller connector?



[BigPapa]

Wild guess... trailer brake controller connector?

Bad guess.

There is a PCM on the truck that does control some systems such as the alternator, heater grids, A/C, etc. That is the interface connector for this.



[Bob4x4]

It is called a data link connector and is mandated by federal law.Your truck is an obd2 model.Some of the pin locations are mandated by the protocol some are optional for the mfg to use as desired.The connector allows a scanner to communicate with all the modules on the bus,abs,air bags,engine/trans,etc



[Mikey-KE7LBB]

OBDII... Every passenger vehicle sold in US has had one of these since 1996.



[savage54]

So does it control any operation in the transmission?



[Bob4x4]

The pcm has some control IIRC you should have a 47re trans.A scanner will connect through the dlc to view data.



[Missouri Mule]

The pcm determines line pressure in the trans *so the trans will shift up and down. There is a governer and pressure sensor and a few other components and sensors it relies on.
