1998 12V Can't Find Oil Pressure Sender

[RChesney]

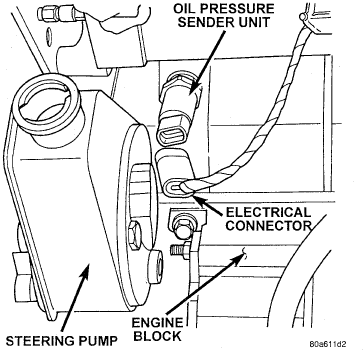

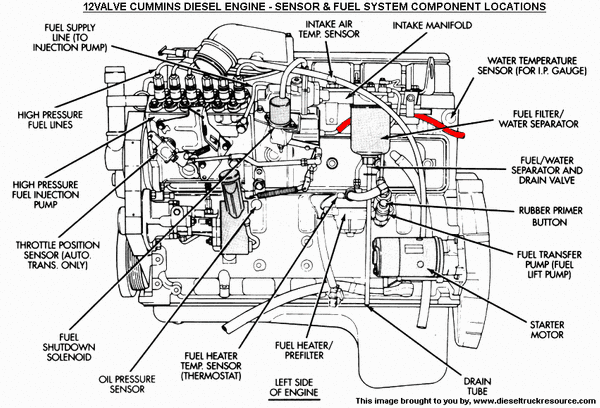

Kind of lost or at least misplaced. I think I have an odd build on my 1998 2500. Trying to find the oil pressure sender so I can replace it. Looked at diagrams and thought it would be a piece of cake, but sender location for 12V all show it behind the power steering pump. Mine isn't there! Looking at the 24V, it appears to be near the ECM. I don't have an ECM since it's a 12V. But it is a Quad-Cab. Closest I can figure is it must be down behind the fuel/water separator. Besides the sender, now I'm wondering what engine I have in this thing? I bought it new in December of 1998, the last 12V they had on the lot. Any help appreciated!



[The patriot]

Drivers side of the block. The IP is in the way, prob got to look from the bottom.



[fest3er]

Turn the steering wheel all the way to the right. Then look in from the side, barely behind the axle, from just under the wheel well liner.



[RChesney]

Thanks for the tips, guys. Have to wait until tomorrow and I'll try again.



[The patriot]



[Missouri Mule]

Pull the connector, spray out the connections with contact cleaner . Plug it back see if come back to life.
Also the oil pressure sender grounds to the block. You mite try cleaning where it grounds. As I recall rubbing it with emery cloth.
