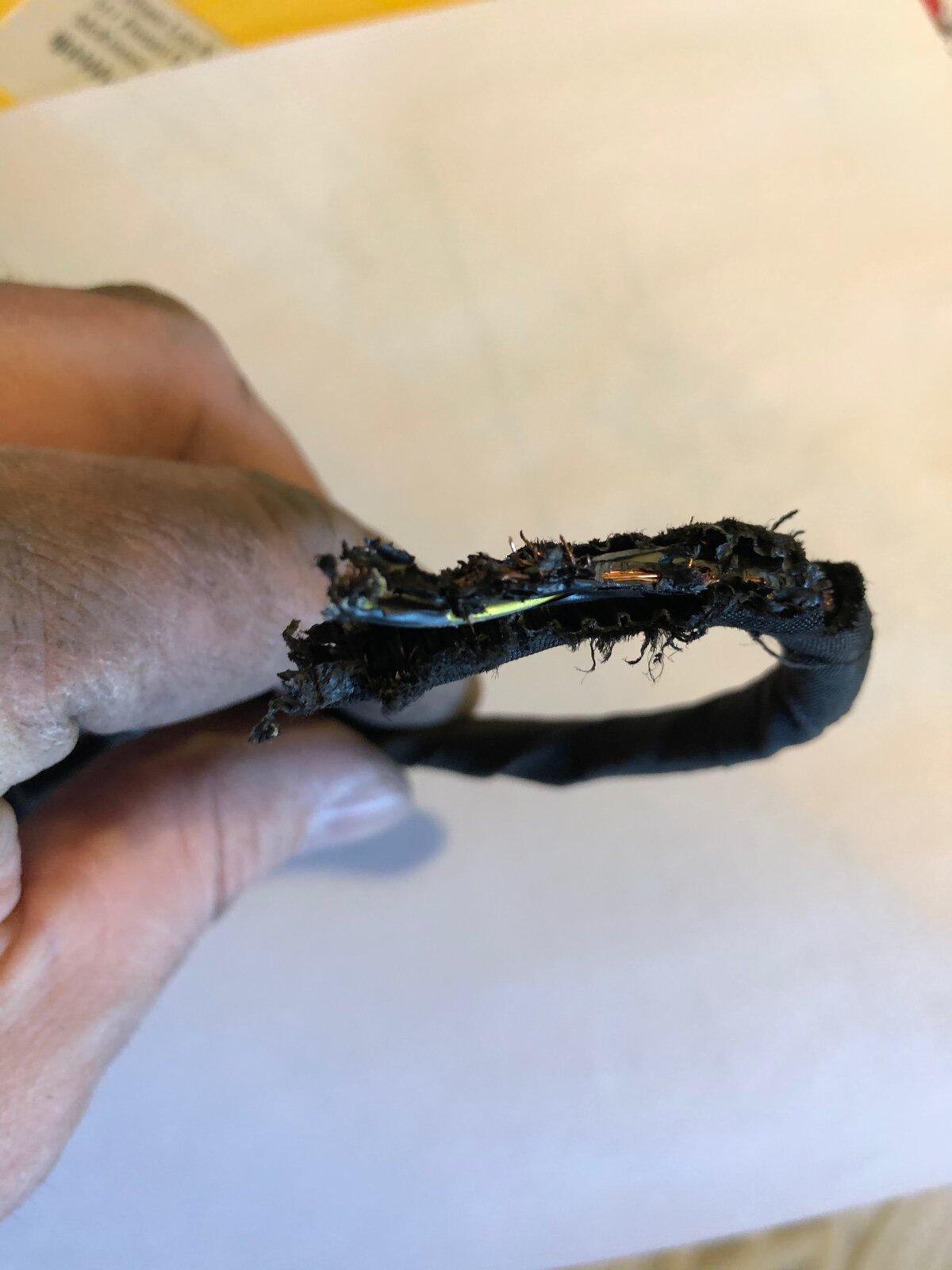

Does anyone know which wiring harness the horn wires come out of on a 2016 3500? Squirrels were under my hood for the past two nights and ate a number of wires, including the pigtail that connects to the horn under the drivers side inner fender. I know it sounds crazy but so far I can't identify where the wire should connect back to a harness:

View attachment 117959

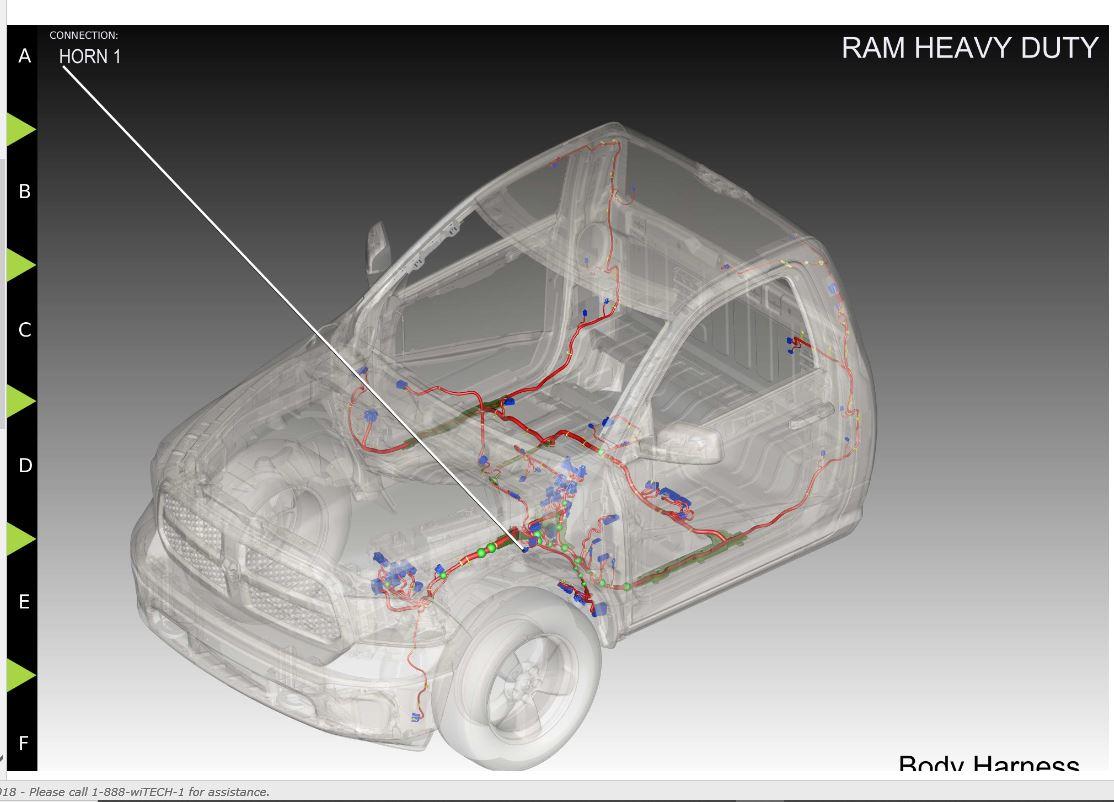

I have a 2017 Ram 5500 and the Factory Wiring Manual for it to see if it will help.



Cheers, Ron
