Any new (2019) 6.7l diagrams floating around out there?

[Signal73]

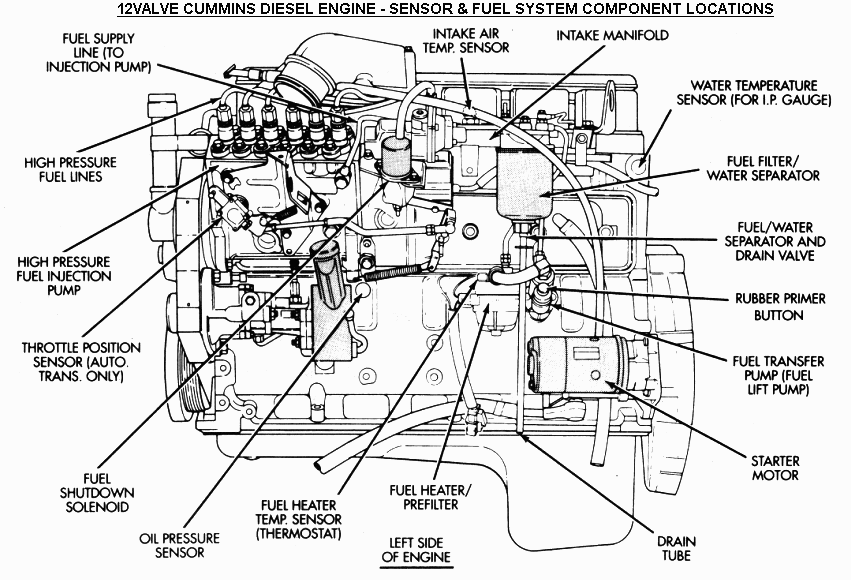

looking to familiarize myself with all the gadgets on my new rig, under the hood. Anything similar to the attached photo? A bit different then my ole 12v dinosaur. I didn’t see any articles explaining how the various systems worked, etc. missed a couple years of Tdr subscriptions, getting back on board with that now. Thanks



[Timd32]

Some overview stuff here.......

https://www.cummins.com/engines/cummins-67l-turbo-diesel-2019

You can always register your ESN with Quickserve they might have some stuff on there as well.

https://quickserve.cummins.com/info/index.html



[gtwitch]

To get registered on Quickserve you need the ESN (engine serial number) where do I look for that?



[Timd32]

I think its between the injection pump and the radiator, drivers side area.....

My 12v is on the timing cover small metal plate.



[Signal73]

On my 19 there is a sticker right on top of the valve cover, cover. Close to the cowl.



[gtwitch]

Thanks guys I will look now!
