Attention: TDR Forum Junkies Dave Rogers
TDR MEMBER
Fellas, I've got a dumb question, need a picture of the little heat shield P4935051 installed so I can put it back where it belongs.
Backstory: 'Just did the EGR cleaning routine (used the kit from Geno's), it's very tedious but not really "hard." (Truck has 235,000 miles on it, this is the second time I've done the cleaning routine since I bought it about 6 years ago.).
In the course of reassembling everything, I forgot where this little stainless heat shield goes! I puzzled over it for a long time before necessity required that I go on and button up everything else so I could use the truck.

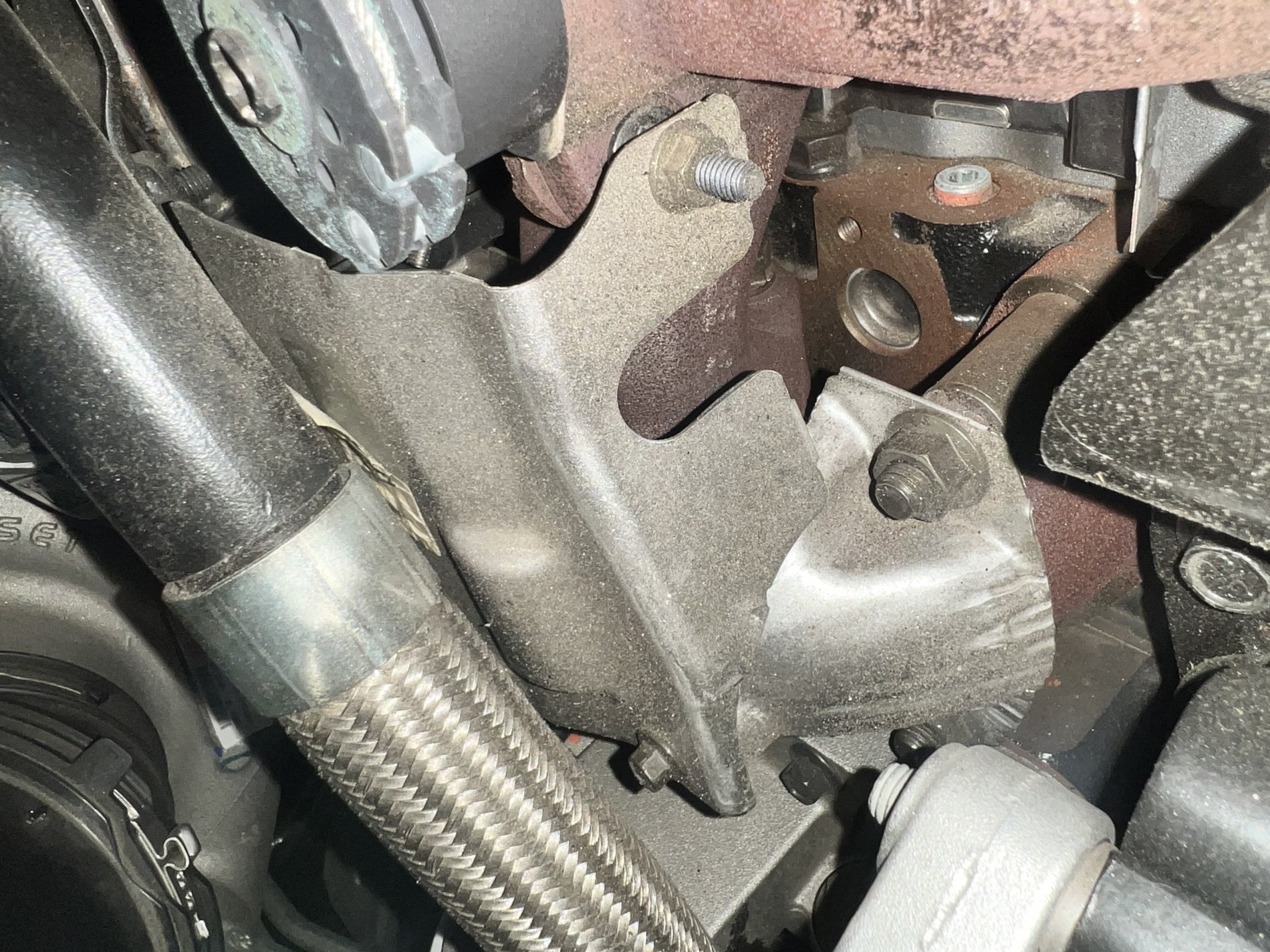

As best I recall, it mounts somewhere in/over/under/around the coolant pipe that crosses over the top of the EGR cooler box, but for the life of me I can't seem to orient it so that it lines up with any of the mounting bolts. Could somebody pop the hood on their truck and post a picture of it in place, so I can see how it's oriented and where it's supposed to mount? The truck runs fine without it, but it was there for a reason, and I'd REALLY like to avoid frying something that's supposed to be protected!
'Sorry for the rambling post, I really just need a picture so I can stop feeling like an idiot! Thanks!
Dave in Fayetteville, GA
