Cummins12V98

Cummins12V98

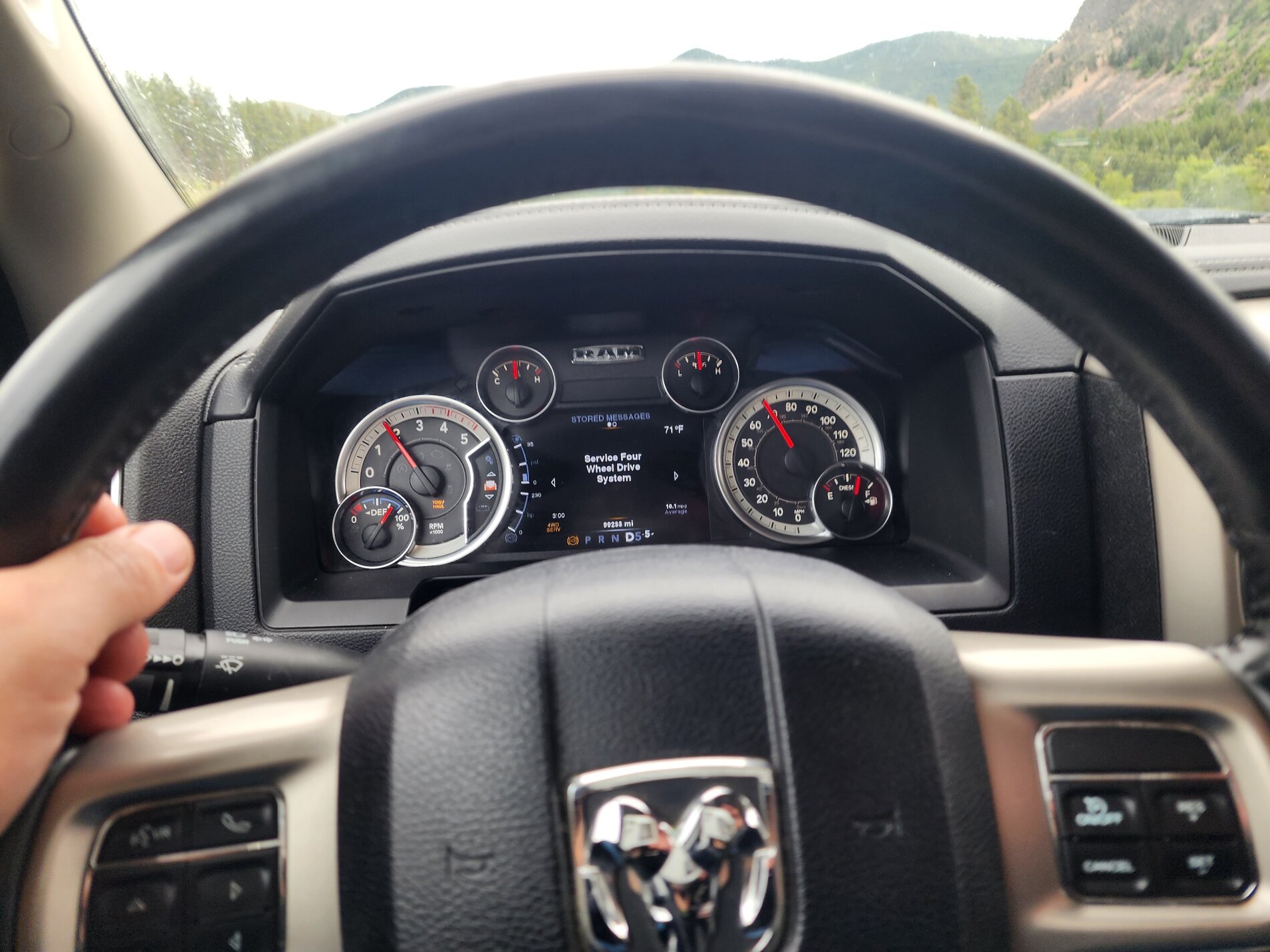

Son bought dad's 2014 3500 4x4. Traveling back to TX service 4wd yellow light came on and also on dash. Connection looked good, what is the fix if any besides bending over for a new part?


Check the actuator for power and movement. It takes a beating on the axle! This is why it's recommended to engage the 4x4 several times a year when on gravel or in the yard. Just remember to back straight up to make sure it's fully disengaged! Hope you don't need the part.

Id probably pull the actuator and confirm everything is moving and in good service at a minimum, Im not sure about the layout, but I assume its similar to the turbo actuator with a sliding collar?

He ended up getting a Dorman from SCAMAZON with free returns for $175 and a lifetime warranty from Dorman. Cant go wrong with that.

I put a Dorman cam sensor in one of the Subaru's I built and it ran terrible and was setting random misfires. I replaced it because I damaged the OEM sensor when I disassembled the engine. I checked all the other potential causes and decided to install the OEM sensor and it was still running great when I sold it.

Mystery continues. Dorman gives the same codes as the OE in the 14. Son took the Dorman and put in his 15 and wala the code appeared on it also. SOOOOO, that tells us the Dorman is bad also. I hadn't mentioned it but the one bought was "used" for a better price on AMAZON. I have done so with several products that simply had been returned with no damage.

So the AAM OE unit was ordered last night and hope that puts this saga to bed.

Someone sent his bad one back, after ordering another one..
I had this problem too with something else.

I hate it if people take advantage in that way from the Amazon system to get free parts.

It seems that many folks have mentioned that 4wd actuator warnings were often one a of a few random signs that the batteries were going bad.

Have you verified if the actuator is actually not working?

kthaxton said:
It seems that many folks have mentioned that 4wd actuator warnings were often one a of a few random signs that the batteries were going bad.

Have you verified if the actuator is actually not working?
Click to expand...


Not sure on that question but New Costco Interstates just before the trip back to TX.
