MuddFlapp

MuddFlapp

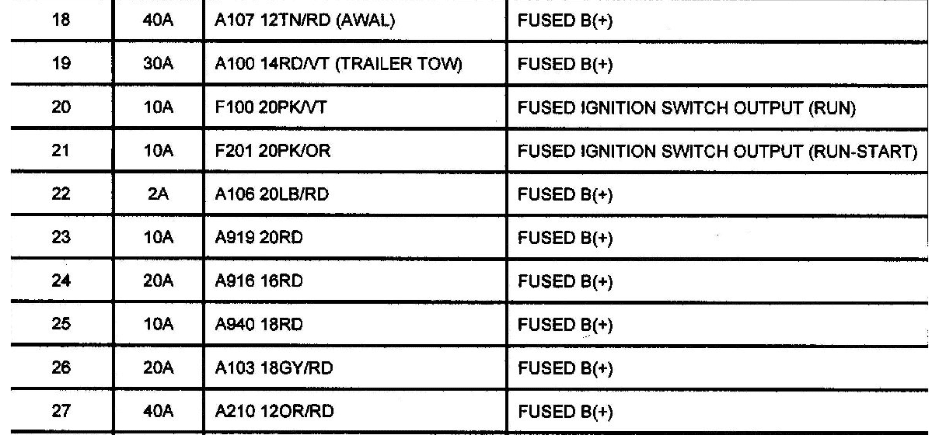

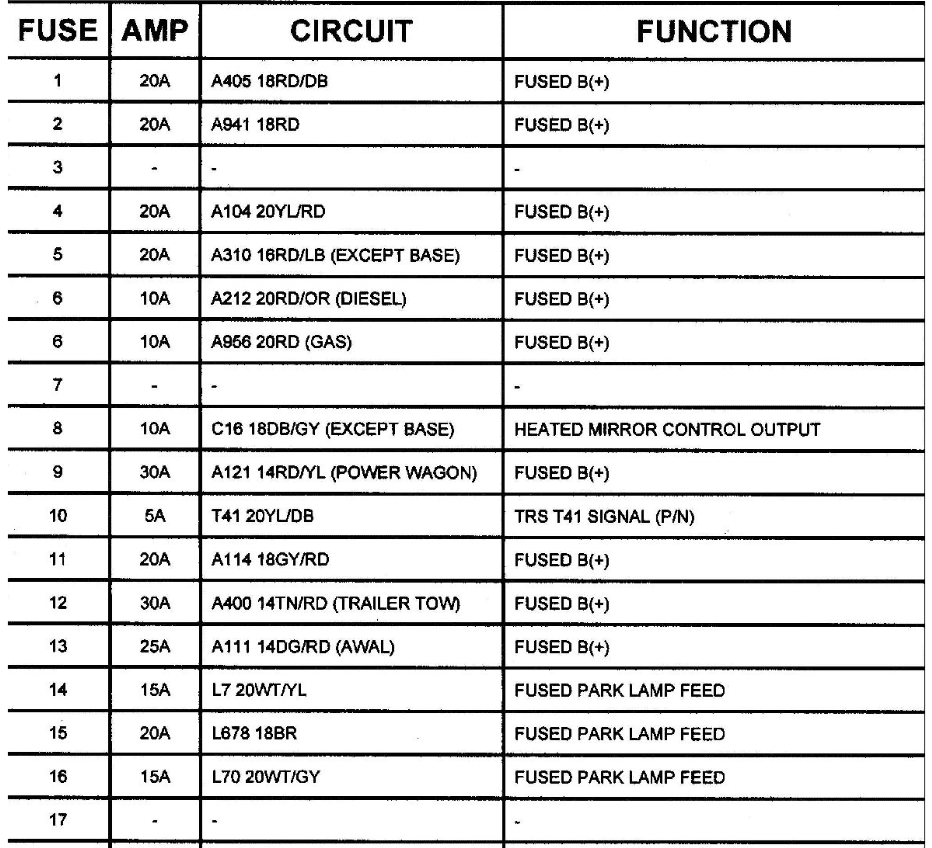

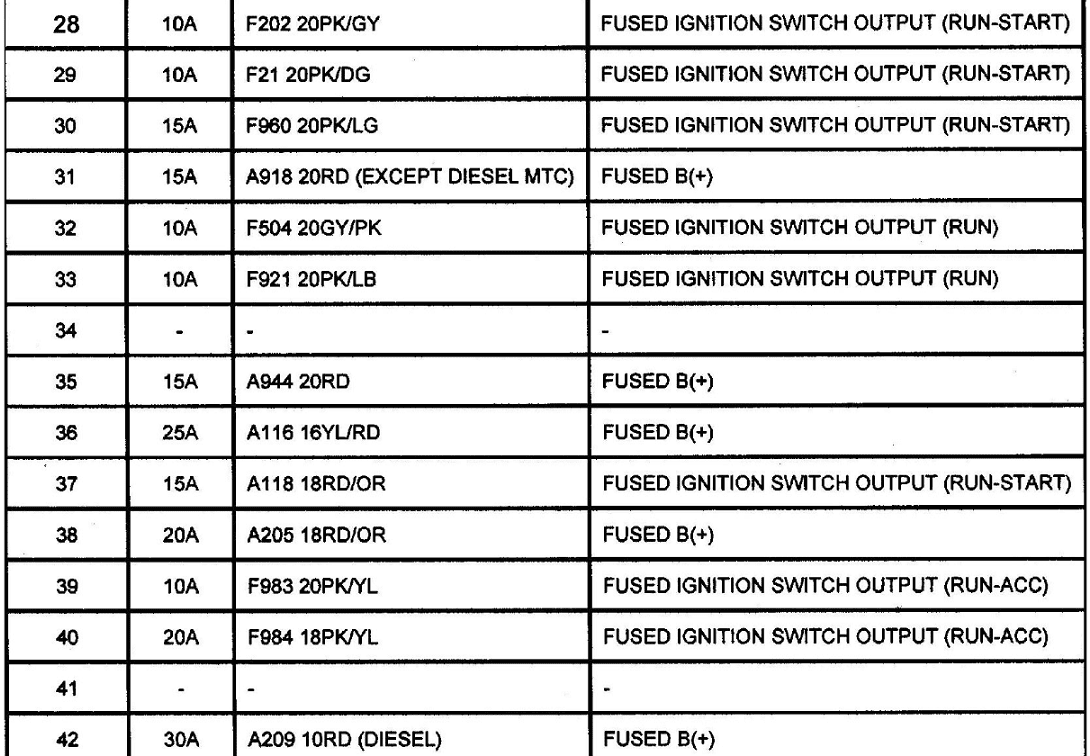

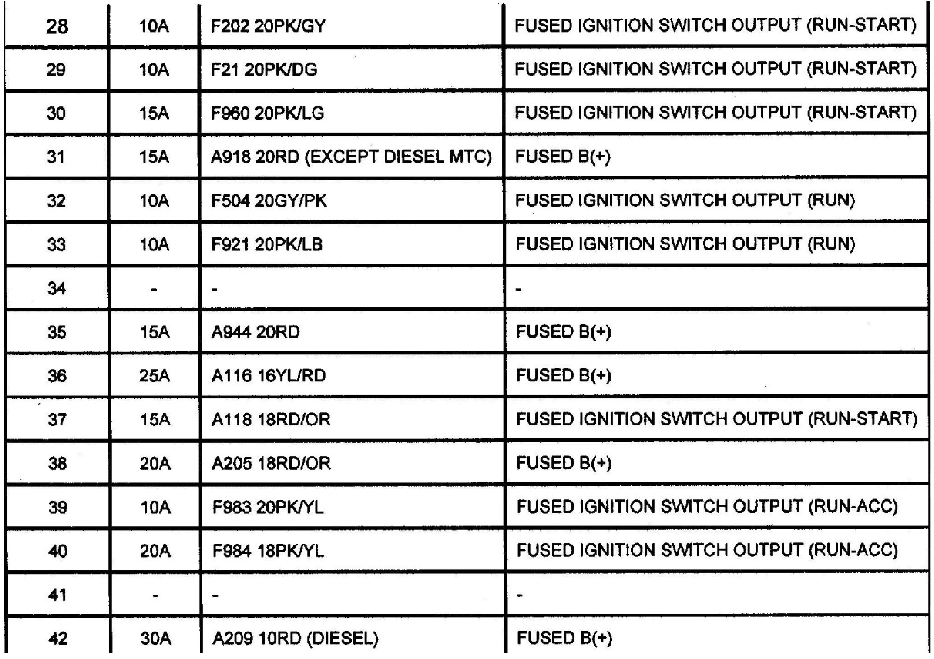

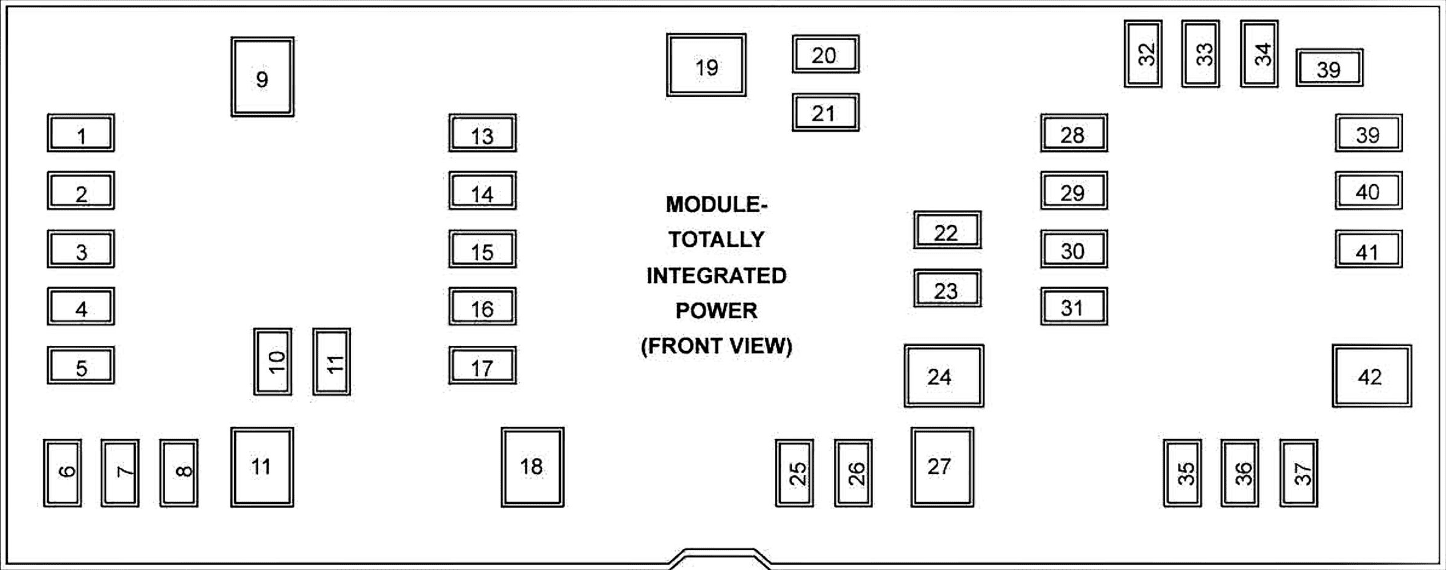

Does anyone know where I can get an image of the TIPM lid with the fuse placement diagram? Mine went back with the core.

Thanks

Best I can do.
