Headlight schematic

[SAndreasen]

Does anyone have a wiring diagram for a 99 headlight circuit



[Iron Duke II]

Here is a link to a 2000-01 shop manual. Check index on p.956.



[BigPapa]

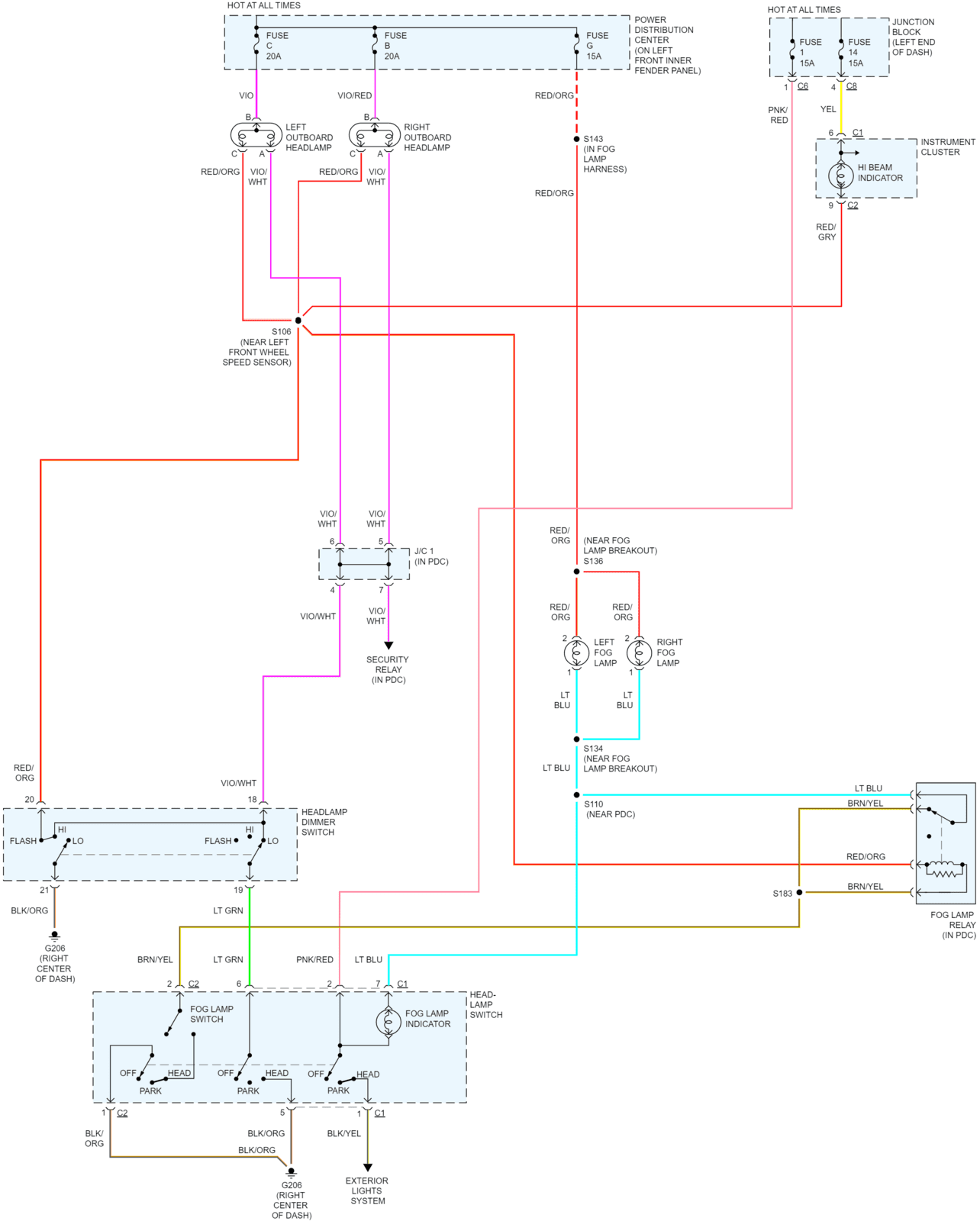

This is WITHOUT DRL's and STANDARD headlights, NOT SPORT's.



[SAndreasen]

Thanks you guys . So looking at the big diagram which wire is the high beams



[petersonj]

Start at the "C" connection at the headlight and follow the red wire through "Splice 106" to connector "20" on the dimmer switch. Then from connector "21" on the dimmer switch through the black with orange tracer wire to Ground connection "G206".

- John



[SAndreasen]

I will have to see if I can save the photo and see if I can see what’s going on
