Integrated Power Module repair - '04.5 3500 cummins

[Lmoore1624]

Has anyone out there ever disassembled the IPM so you can get to the internal circuit board? I can do circuit board repair .... just opening the plastic case is the problem!

thanks! ....

IPM #P05026032AB A



[Bill Stockard]

Send a PM to T&C Diesel. IIRC, he has disassembled a few.

Bill



[Lmoore1624]

.... thanks Bill, I will!

LG



[FJfonda]

See my post - included is the how to link

https://www.turbodieselregister.com...onsole-problems-and-Windshield-Wiper-problems



[Lmoore1624]

Thanks FJ ..... looks like I have some readin' to do !!

You guys ROCK on TDR !!

thanks again !!



[Lmoore1624]

Before I reinstall the IPM/FCM back in the truck, I would like to wire-in a 'start/run' +12V for a set of LED Driving Lights (draws less than 1amp) ..... does anyone know an easy and SAFE area for this electrical connection to the bottom plugs(P1-P7) of the IPM? (P3/P4 are FCM inputs/outputs)

thanks



[FJfonda]

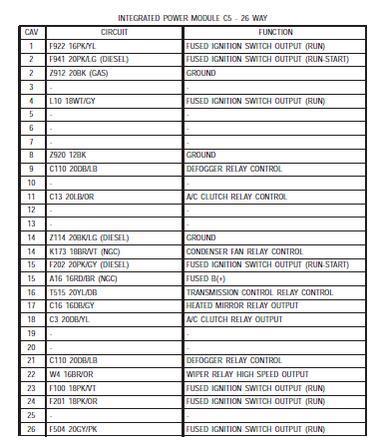

Looks like C5 Pin 15 should fit the bill



[Lmoore1624]

thanks FJ! I'll check it out ......
