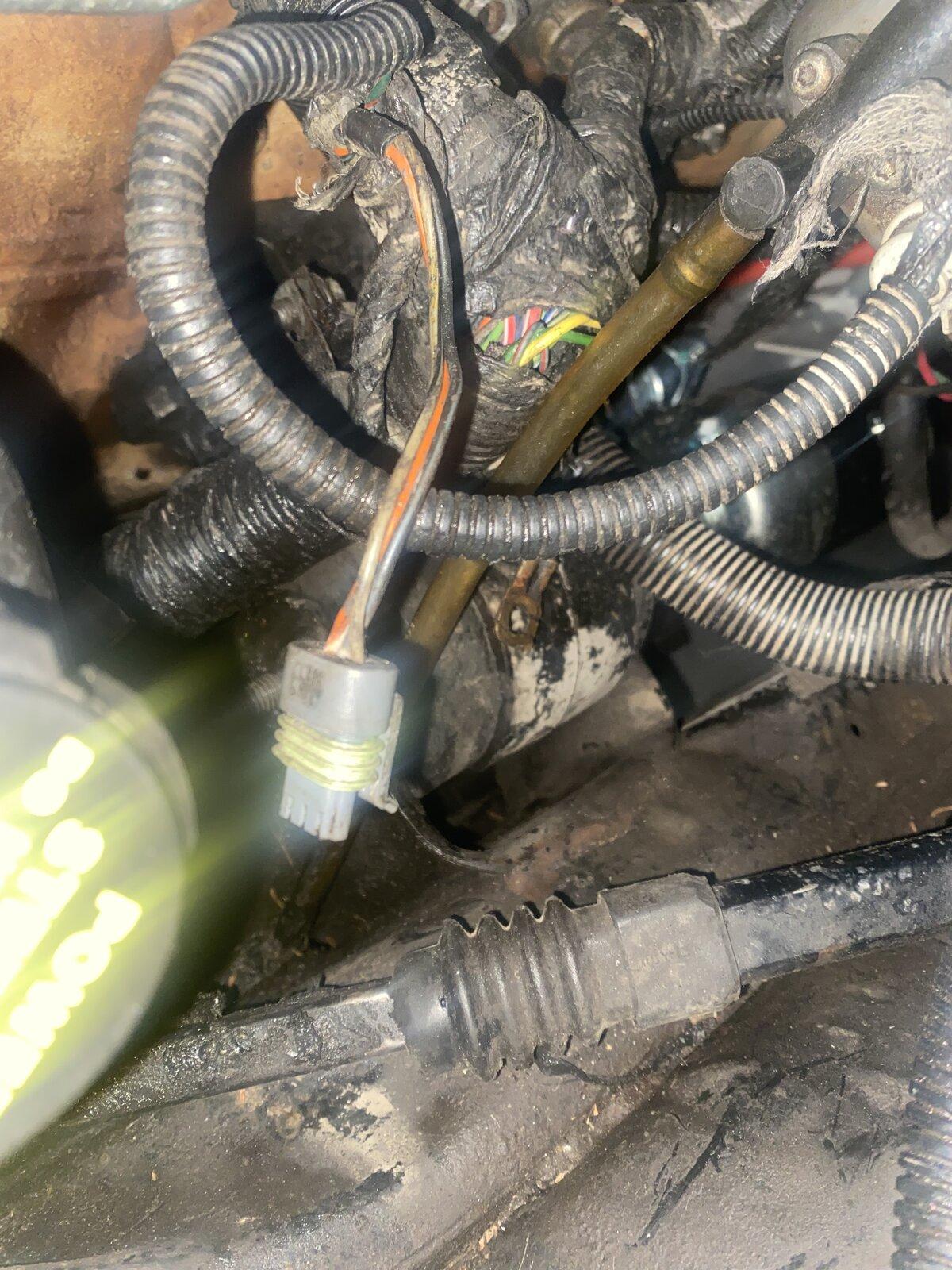

Mystery wire

[SAndreasen]

Can’t quite figure out where this one goes



[Diesel Gunner]

Is this the left side rear of the engine, behind the stock fuel filter?



[RBeard]

I'll go look at mine real quick and see if I can locate it.



[RBeard]

On mine it looks like it goes to the oil pressure sending unit on the side of the block



[Hoopster]

+1 on the Oil Pressure Sending unit.

In you picture there is also a Ground wire (sitting loose on top of the motor mount in your picture) this bolts to the block by the starter, I think it one of a few ECM grounds.

All ground connections are mandatory on these trucks.



[SAndreasen]

+1 on the Oil Pressure Sending unit.

In you picture there is also a Ground wire (sitting loose on top of the motor mount in your picture) this bolts to the block by the starter, I think it one of a few ECM grounds.

All ground connections are mandatory on these trucks.

that was the next mystery wire I was wondering about thanks .



[SAndreasen]

On mine it looks like it goes to the oil pressure sending unit on the side of the block

Not the oil pressure it’s- already hooked up



[BigPapa]

I believe the only other 3-pin on that side is the MAP sensor. What year is this truck and what color are those wires?



[SAndreasen]

It’s a 99 and i think it’s got to be the crankshaft position sensor thinking about it because it and the map sensor are w only two left it just hit me . Now hook that ground up. I’ll let you know for sure Monday when I get back to the shop



[SAndreasen]

Wires appear to white or yellow and grey and orange



[SAndreasen]

Is this the left side rear of the engine, behind the stock fuel filter?

Yes



[BigPapa]

i think it’s got to be the crankshaft position sensor

Cam Sensor

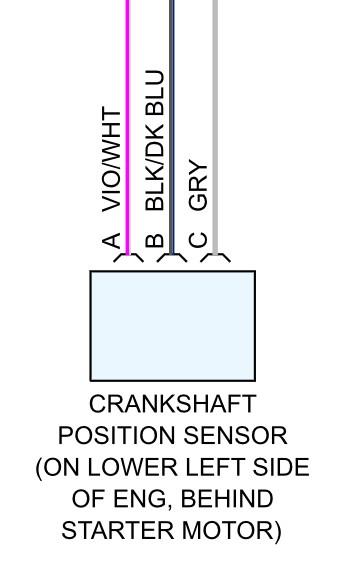

Crank Sensor has a Violet/White wire



[SAndreasen]

Then I’ve got some serious routing issues going on



[Ozymandias]

Does everything work as expected on your truck?
Because if so, then it can't be any of the mentioned wires.



[RBeard]

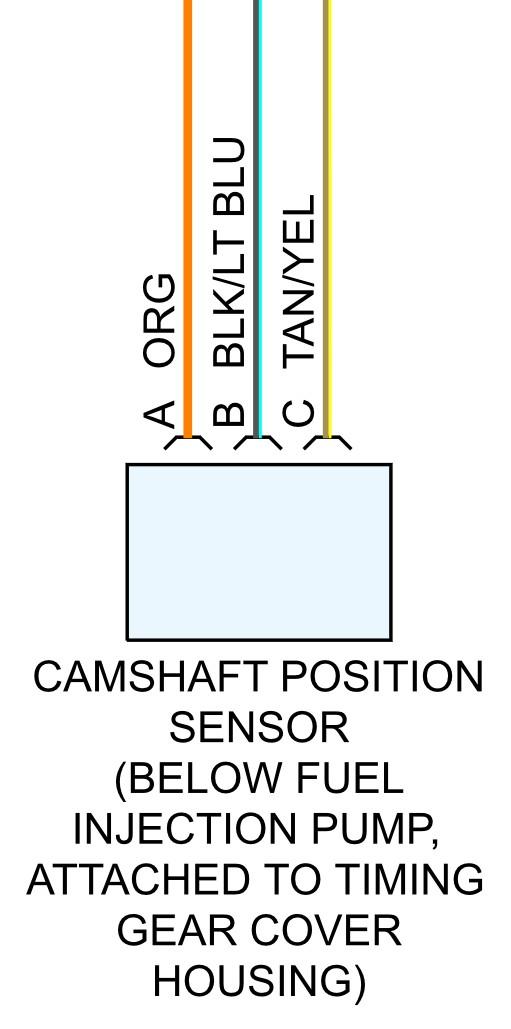

+1 to big Papa. I see orange, black, tan=Cam sensor



[SAndreasen]

I haven’t started it yet .just trying to get all the wires routes where they need to be



[SAndreasen]

Ok so we did have some serious routing issues think I’ve got everything right now . Now I need a new map sensor because the shop broke it



[Diesel Gunner]

Ok so we did have some serious routing issues think I’ve got everything right now . Now I need a new map sensor because the shop broke it

OK, I thought that it might have been the MAP sensor because of the location and connector.



[SAndreasen]

OK, I thought that it might have been the MAP sensor because of the location and connector.

the map sensor on this one is round .



[Diesel Gunner]

the map sensor on this one is round .

Then, I, Sir, stand corrected!

My Bad. LOL
