2nd Gen Non-Engine/Transmission New lift pump and dual gauge install

[Hitec.Redneck]

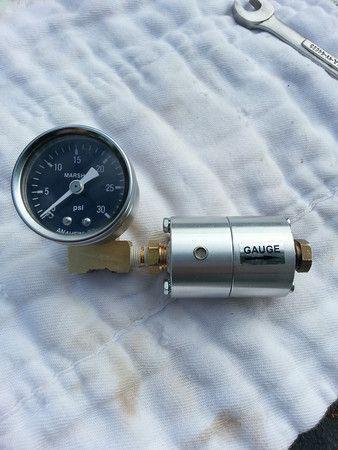

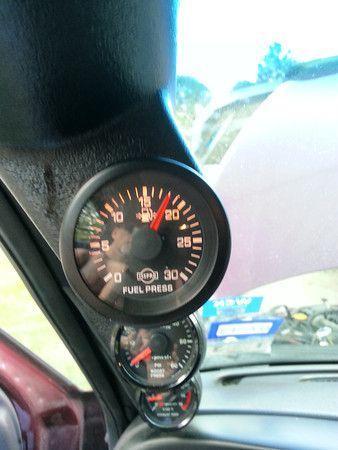

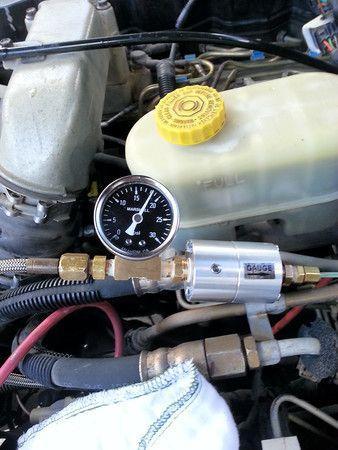

I replaced my old stock lift pump with a new FASS DDRP. Installed the pump on the frame near the tank and upgraded all the fuel lines to 1/2 and did away with all the banjo bolts. After the install the pressure was only 12 PSI at the VP so after talking to FASS they sent me a different spring now the pressure is 18 at idle. My fuel pressure gauge and isolator was also bad, I replaced the gauge still read low, so it I went ahead and replaced them both. I also installed a manual gauge under the hood on the input side of the fuel isolator. the gauge under the hood reads about 1 psi more than the new Ispro inside the truck.

Plan on going on a test run later to see what the pressure drop will be at WOT, since my truck is stock I expect @ 2 - 5 psi drop.



[jeepit]

I wouldn't expect more than a 2lb drop.



[DAN V]

No banjo's

When you got rid of all banjo bolts what type of fitting did you use or is there a "kit" that you bought?
