Seat Heater Switch Wiring

[Dscholz]

I have a set of seat heater switches that I would like to install and use to power auxiliary lights on my 2005. Does anyone have a wiring diagram that shows the wires going into the switches or knows what color wires are which? I'd like to install the switches next to the existing seat heater switches in my dash for a clean install. Just wondering if anyone else has done something similar or has the wiring diagram.
Thanks,
Dan



[Bob4x4]

As I recall the switches are resistive-not on /off[h=3]HEATED SEAT SWITCH CONTINUITY[/h]

Switch Position	Continuity Between	Resistance
Neutral	4 & 6	2.2 Kilohms
Low	4 & 6	.415 Kilohms
High	4 & 6	33 Ohms



[Greg_Stein]

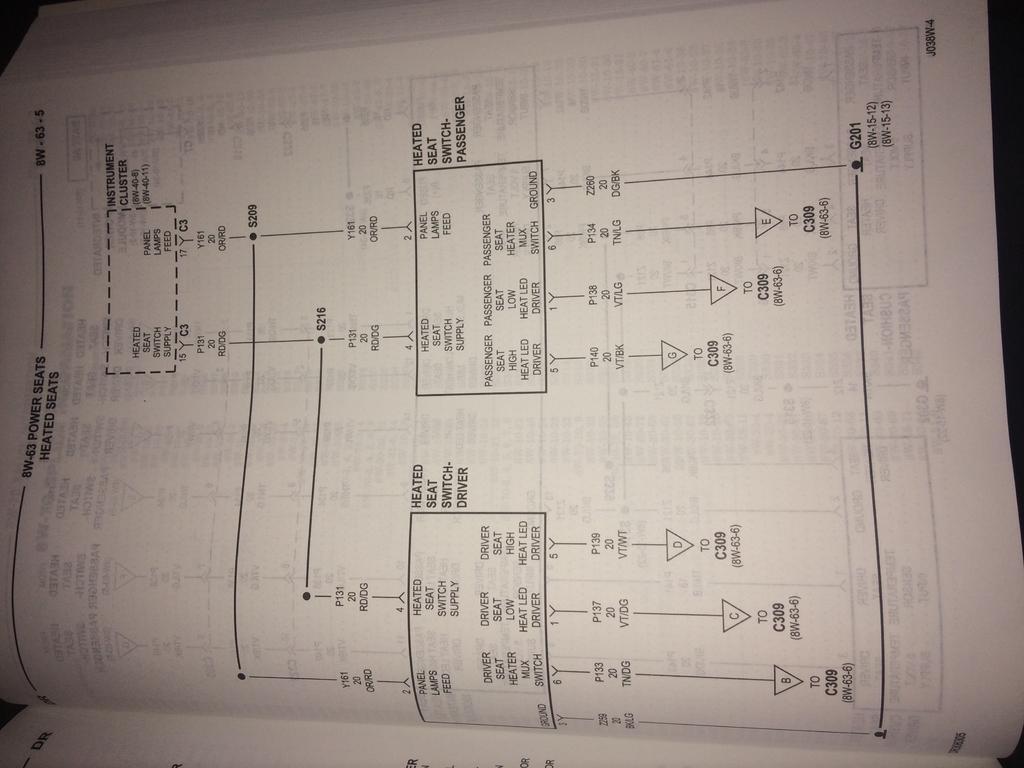

I hope these are the diagrams you were looking for.
