Wiring schematic

[Hitec.Redneck]

My 02 keeps popping the fuse that operates the radio and dash lights. Anyone happen to have a wiring schematic or know where I can get a copy so I can try to isolate what is popping the fuse? This is the fuse that is pulled when the truck is being shipped, it has the housing around it in the fuse panel inside the truck.



[DavidC]

That fuse is known as the IOD fuse.



[DavidC]

01 is as close as I get, maybe the same



[Hitec.Redneck]

01 is as close as I get, maybe the same

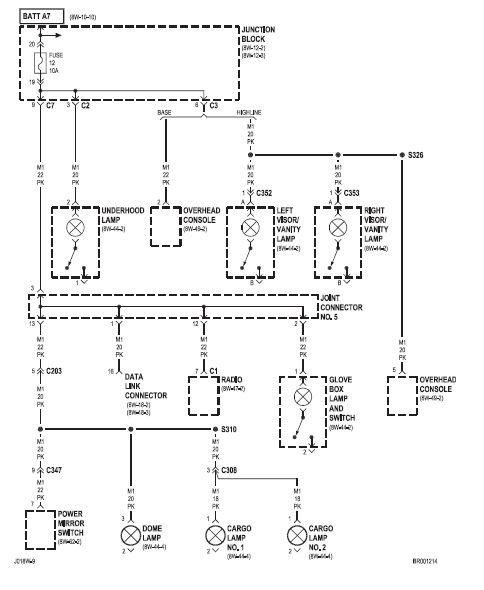

View attachment 114654

Thanks, that helps.
