Calibrating temperature blend door in heater control

[Blakers]

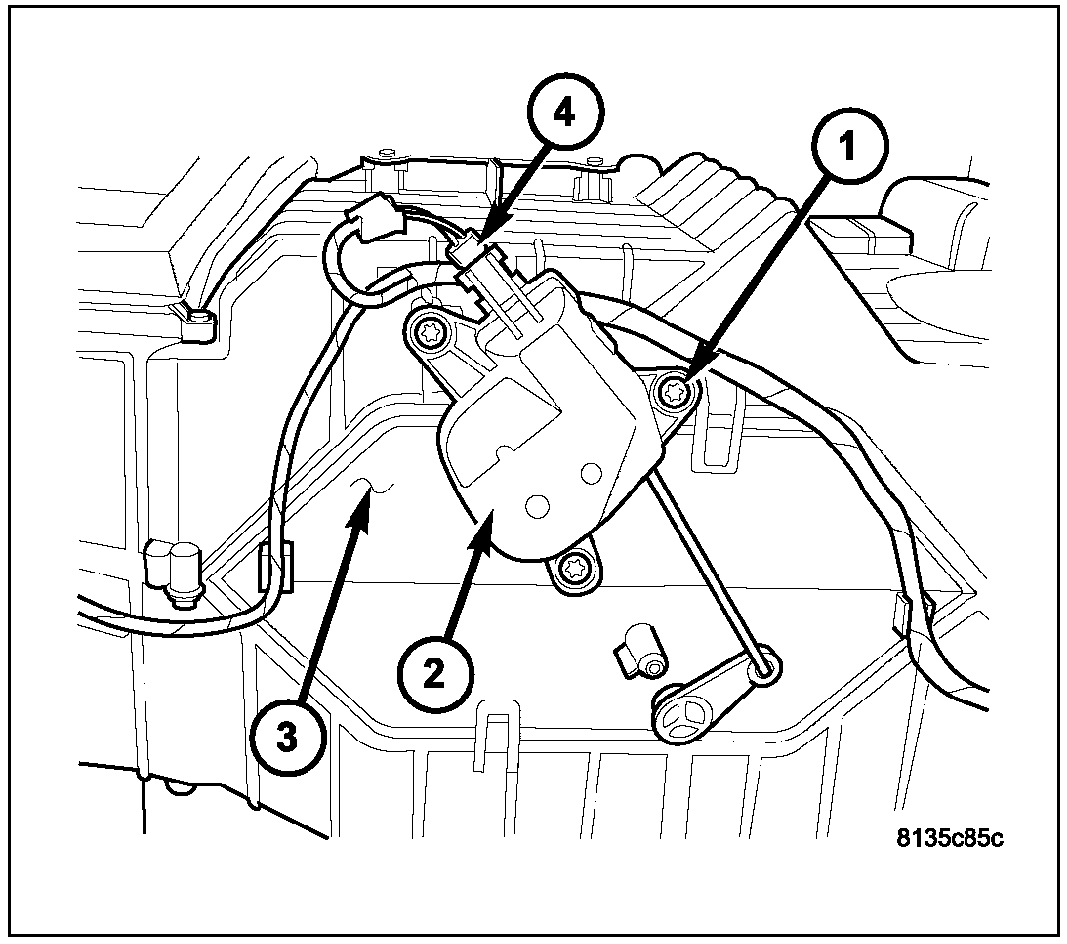

View attachment 141886

View attachment 141887

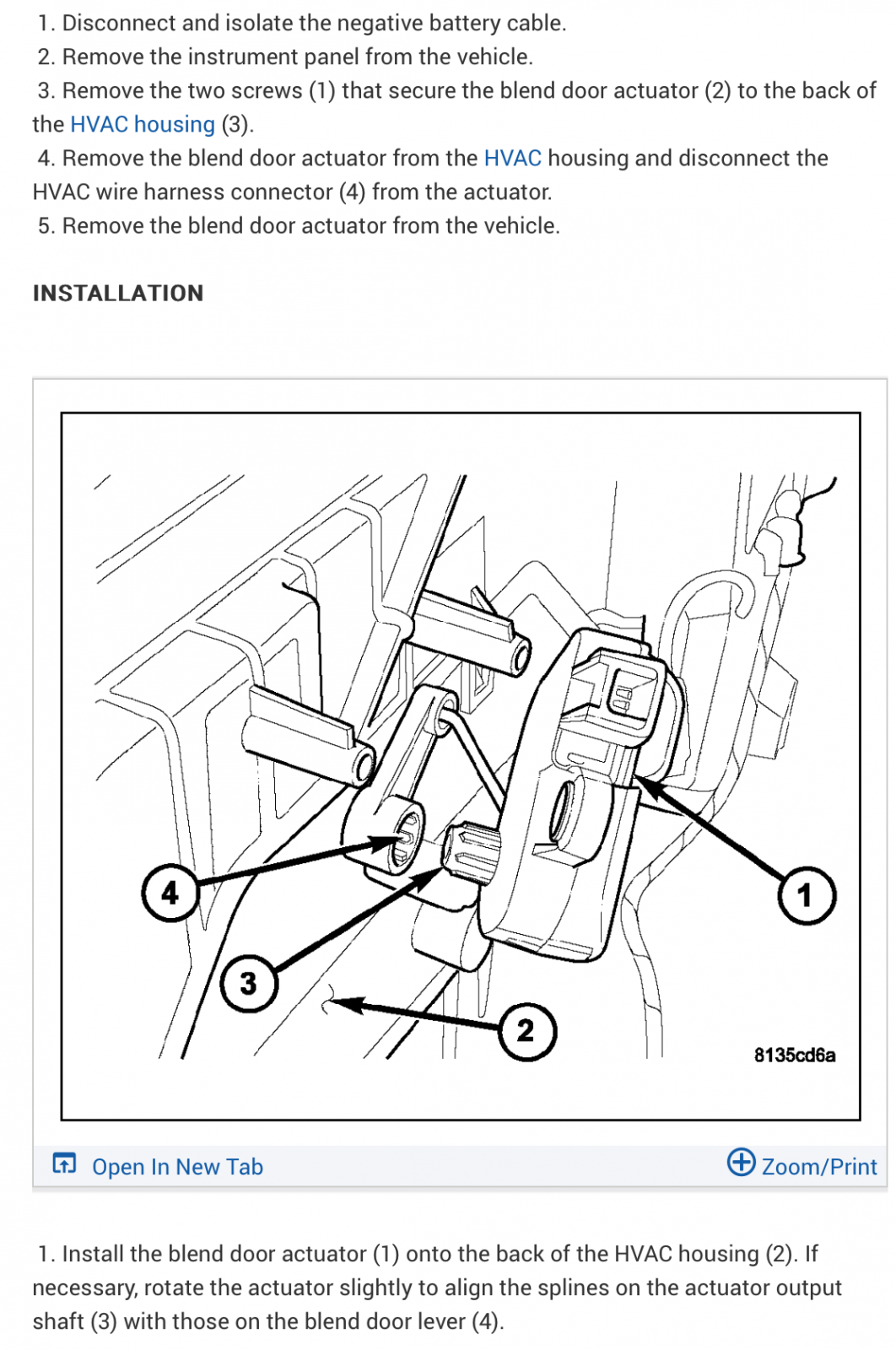

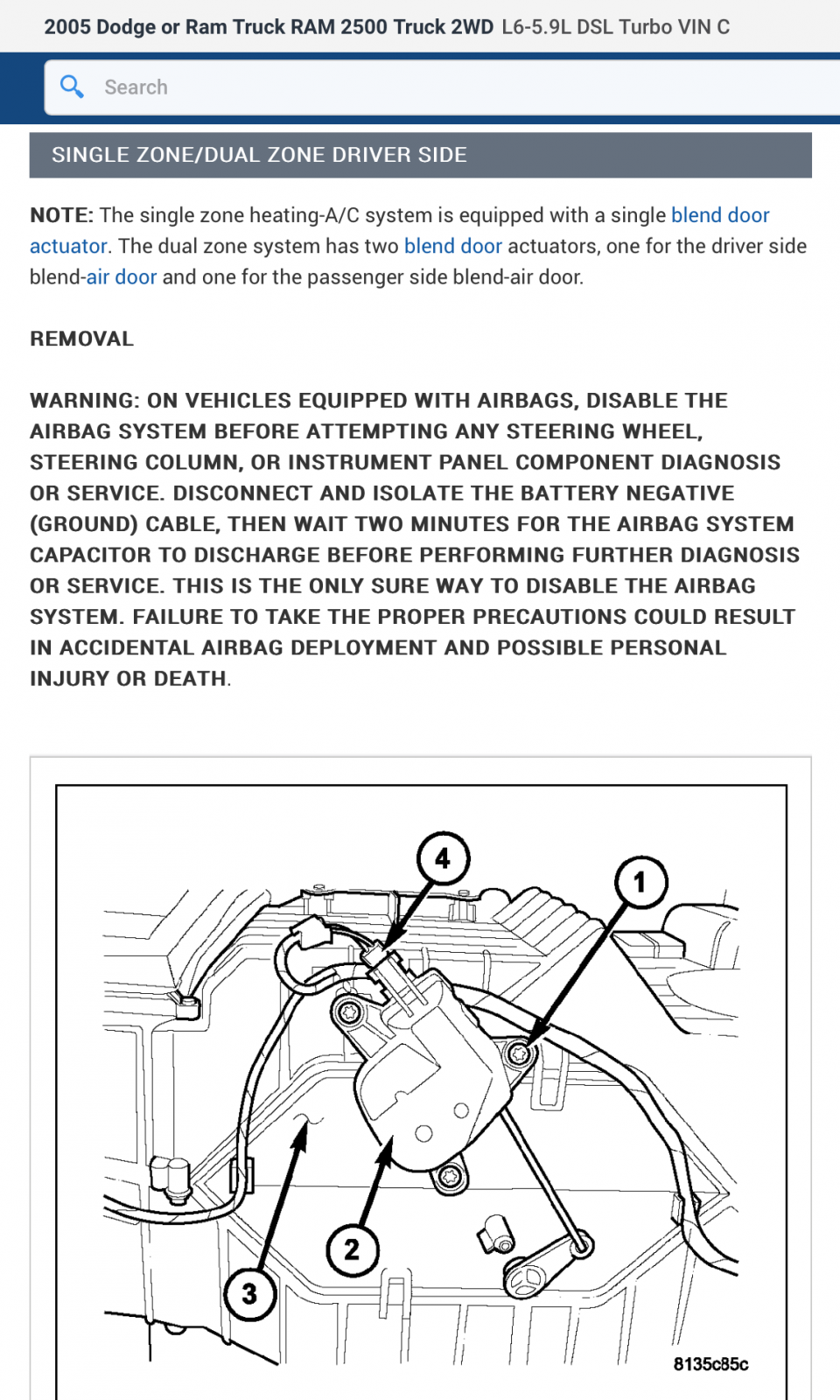

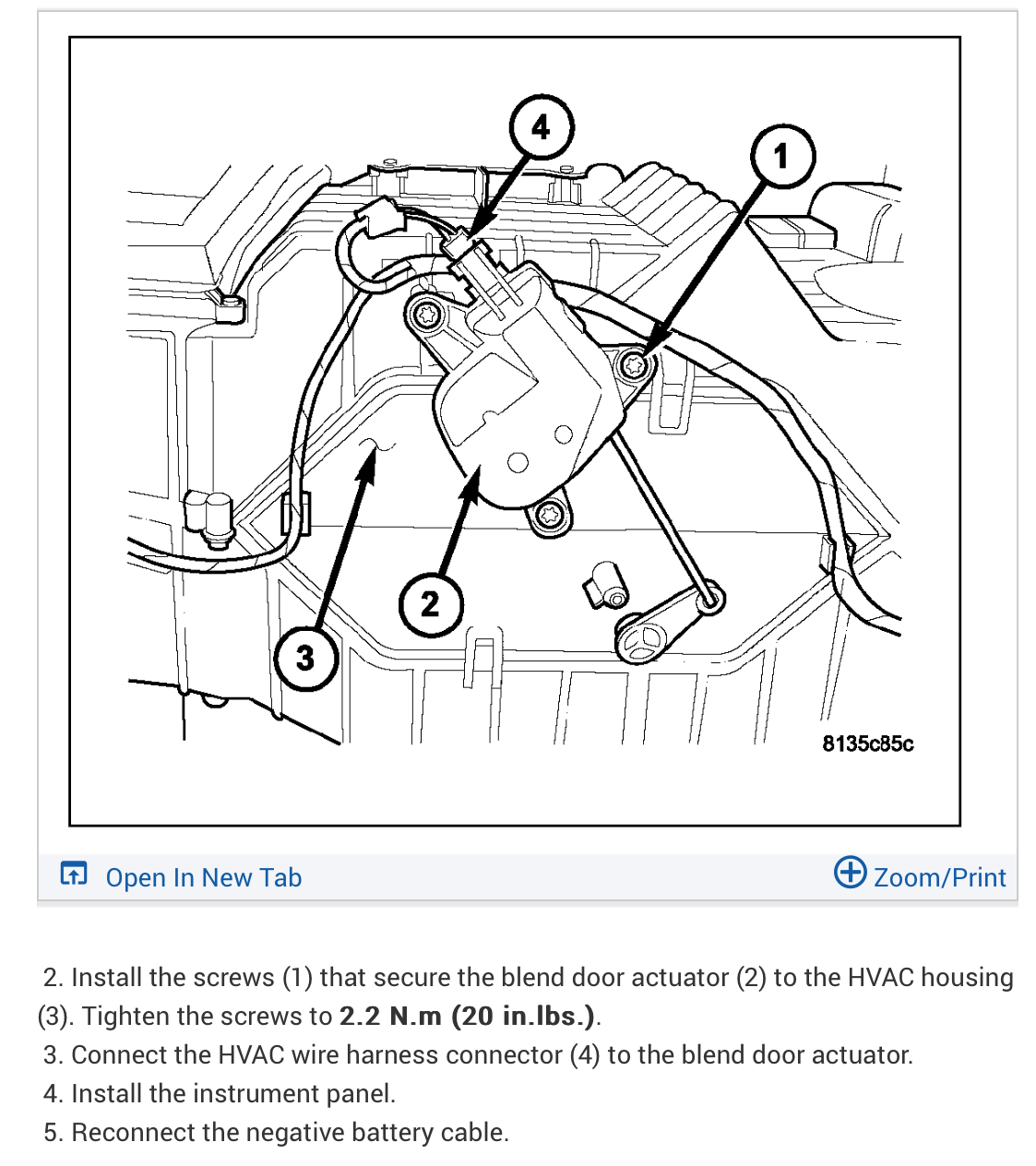

Thanks for the more detailed illustration! I’m pretty sure the top arm is ok.



[Blakers]

I watched the video all the way through, and there is no mention of needing to touch anything on that mixer control. There is no way it could have been that way before as the linkage now hits the dash frame.



[BigPapa]



[Blakers]

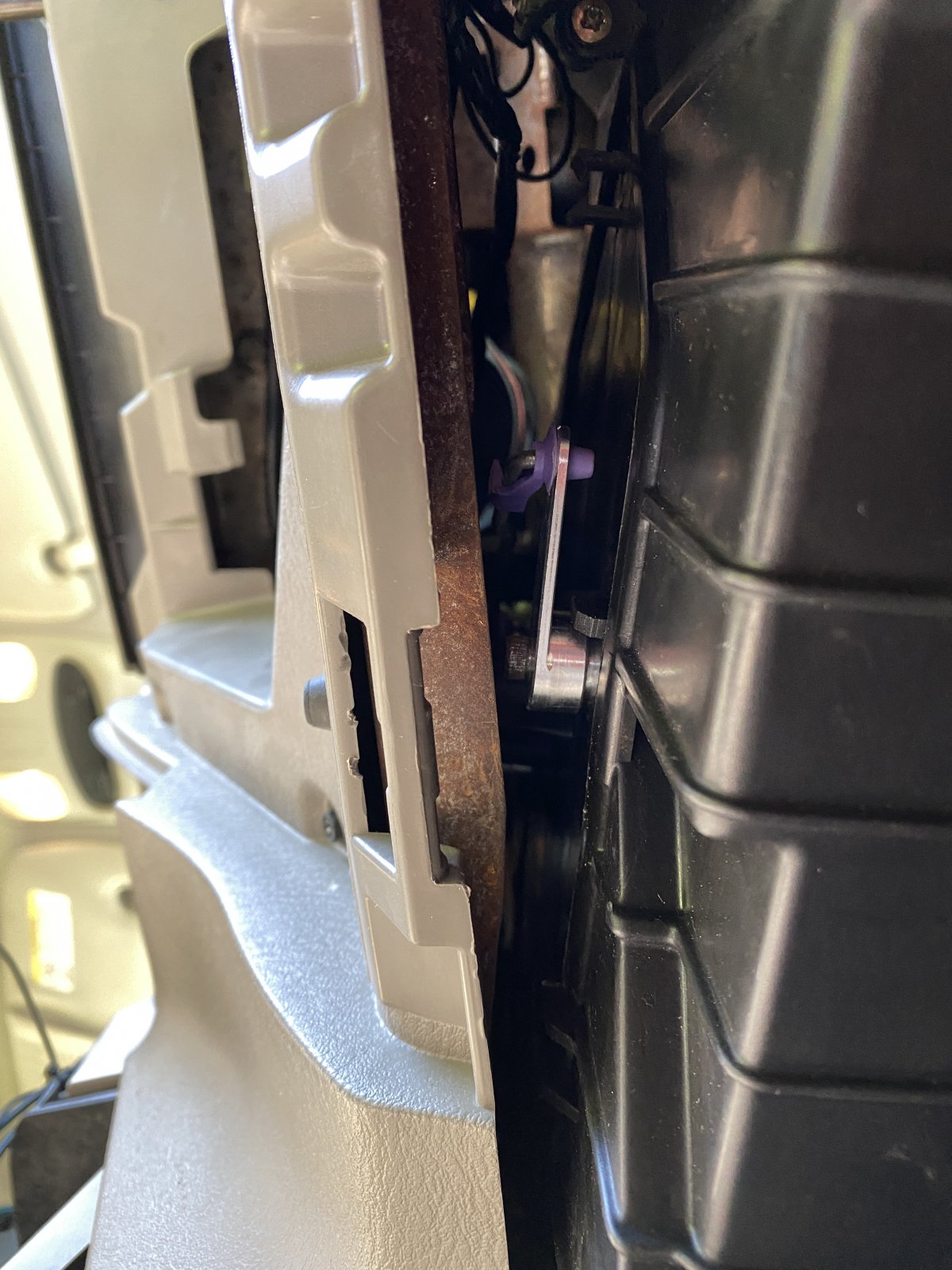

View attachment 141892 Gotter fixed! Thanks for your help guys. Took me less than an hour, but extremely tedious and tight working under there. Besides taking off both ends of the linkage, I had to half remove the screw that held the arm. It’s an Allen head screw, but no room to get an Allen wrench in there, so used a tiny set of vise grips I have. Got everything back the way it’s supposed to be and it worked fine.

Apparently they removed the arm to get clearance to get their hand in there to change the airbag, then forgot how it was when they put it back.
