Interesting F-550 build/TFL video

Towing with a 2017 2500 4x4

NIsaacs

TDR MEMBER
I went ahead and placed the order today. Tomorrow is the last day to order for this year, so, due to a price increase next year, I moved on it.

FMAX 208, 102"x28', max ramps, sway control, winch plate/receiver, drivers side tool box, ratchet rail on the driver side with 6 winches, spare tire (17.5) with 8k torsion axles. About 2.5k in options w/18k gvw. This will include the 16" engineered beam main frame and Fleetneck gooseneck w/bolt on jacks. They claim they are the strongest and lightest on the market.

Very similar to this one, only singles and 4' shorter

https://www.diamondc.com/trailers/gooseneck/fmax208/


Just checked DC's web site, my trailers MSRP went up $800 this year or 4%. I really like their web site, I think it is the only one I have seen that prices the trailers and some options. Other than manufacturers that sell direct, it is a nice feature. The hydraulic jack option is $2700#ad
...I didn't buy it:D

Just got back with the new trailer. Exactly 48 hrs, 1350 miles. The dealer claims that trailers have went up 17% since I placed my order in December, 16 weeks.

Diamond C was having trouble with the "Will Pops" so they are using Cooper now, made in China:) They look good tho.


Nice Nick!
Do you know what tires Diamond C was running? The Raniers on my new dump look a little suspect....

There is a guy that occasionally delivers rental equipment to our job. Forklifts, small man lifts, scissor lifts, etc. He has a Diamond C, tandem dual with the hydraulic dovetail. The dove tail is a beautiful option but everytime he shows up I can not get over the engineered beams that make up the goose neck. They are a work of art :cool:

What are the service intervals on those?

On the caps? Or the oil bath axles? I was just pointing out the upgrade caps over the standard plastic ones. The Valcrum are aluminum with a replaceable sight glass. The plastic ones can crack over time with hot and cold cycles and they leak. I have two on my Lamar seeping that I have to look at.

I am not sure what the recommended service is on an oil change. I have found that the seals will start leaking after about 3 or 4 years, so I wait for that. The unitized seals are expensive and don't like being disturbed. I am not sure why they went to that type seal. I will probably go with a good double lip oil seal when the time comes. The unitized don't wear on the spindle but that is not a concern I have, look at how long the rear axles last on these trucks.

Not really a fan of oil bath with drum brakes. When the seal leaks you have a real mess. The road dust and brake dust will make a greasy goo that you can't hardly clean up. It will also ruin the brake shoes. Disk brakes would be good here, they cant leak on the brakes.

I can not get over the engineered beams that make up the goose neck. They are a work of art :cool:

More pictures, seems like I always get a dirty trailer:(

The attention to detail is amazing, pipe spools welded 360 both ends, grommets everywhere, all stress points are plated, extra crossmembers in high load areas made with I-beam not channel, paint appears excellent and Bulldog BX1 hitch.


I like how far outboard they placed the jacks.

I just read up on the torque tube on the underside, nice!

How is the spare mounted? Similar to Load Trail? I'm looking for ideas on how to better secure mine, I hate that it bounces around up there. I also picked up a cover for it to keep the sun off it but do not want to install it until I figure out how to cinch that guy down.

It is bolted to a heavy duty crossmember, like my PJ dump. The Lamar and Loadtrail are/were flimsy. I will take the new spare and mount it on my Lamar wheel and install it on the right rear, I have my Lamar spare mounted on the left rear already. I would rather carry a used spare than a new one.

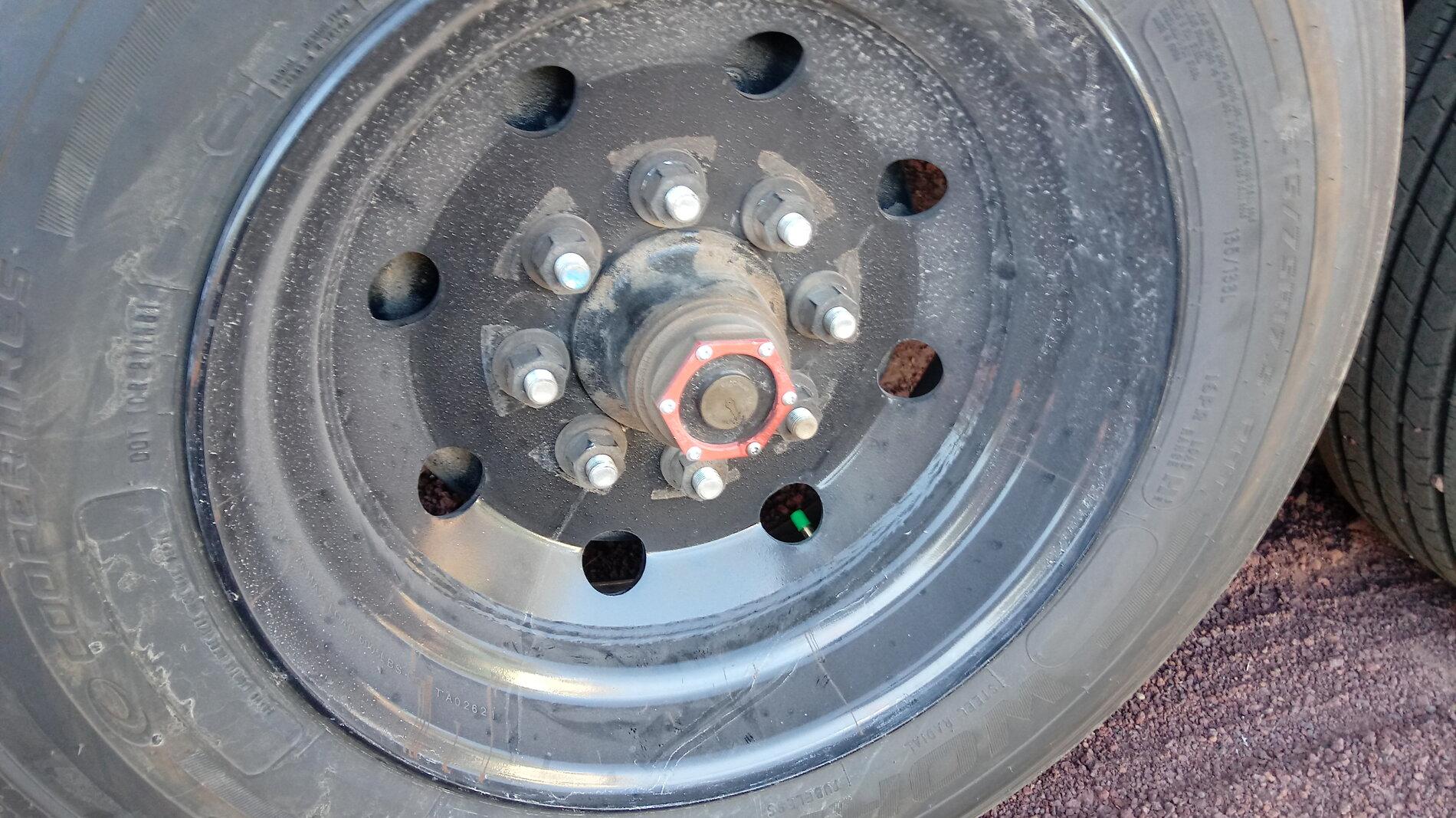

I sent some pictures to my brother and he asked, "where are the valve stems"? Yup, the wheels are mounted backwards:mad:
