Frame rot

[mwilson]

#ad



[mwilson]

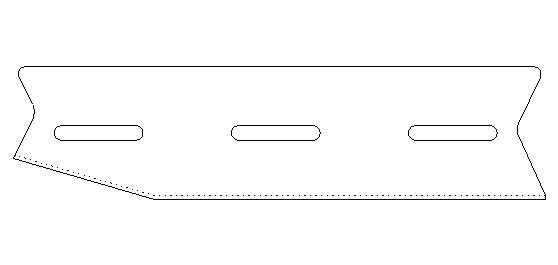

Here's the general concept for the repair piece (5x3x.120 tubing with top removed).

• 18" long
• 4-1/2" high
• Angled ends to prevent vertical welds.
• (3) centered slots (1/2x3) for rosette welding.
• The angled upkick at the lower left is where the frame kicks up over the rear axle. The rotted section is below the center slot.

View attachment 122438
I think this should do the trick. Comments welcomed...

#ad



[mwilson]

Ok, back to work...



[Wiredawg]

Interesting. Never seen or heard of that before.

Gonna be a long weekend waiting for my steel to arrive Monday...

He's pretty talented... while in HS, he took shop welding and worked an apprenticeship at a trailer building shop. My laptop is at manufacturer being repaired; I'd show you pics where I broke the frame on my compact tractor... he did an amazing repair on it.

WRT the stringers, they distribute stress where the strengthened frame and the stock frame meet. I guess it works, no problems with it.
